Hole saw set

Art. 44914
TCT
⌀
25 – 114 mm
⌀
1″ – 4 ¹⁄₂″
Material
Tungsten carbide

Set of tungsten carbide tipped hole saws for extremely fast and clean cutting of wood and plastic or soft cement based materials

  • TCT hole saw enables cutting to full depth without overheating or other problems due to inadequate extraction of waste material
  • Compared to conventional hole saws, the significantly deeper cutting depth of over two inches (55 mm) makes it possible to penetrate most framing lumber in one pass
  • Features are especially suitable for all types of natural wood and engineered wood products
  • Can also be used for soft cement based materials such as aerated and lightweight aggregate concrete

If hole saw is used to cut cement materials, sharpess will decline and performance on wood or plastic will be compromised

For hard wood For hard wood
For soft wood and engineered wood products For soft wood and engineered wood products
For soft plastics For soft plastics
For aerated and lightweight aggregate concrete For aerated and lightweight aggregate concrete
Technical Details
Set Contents
Distribution Details
Related Products

Technical Details

Item
Hole saw set UltraCut 14 pc
⌀ Nominal diameter (metric)
25 – 114 mm
⌀ Nominal diameter (inch)
1″ – 4 ¹⁄₂″
Working Length Nominal working length (metric)
50 mm
Working Length Nominal working length (inch)
2″
Material
Tungsten carbide

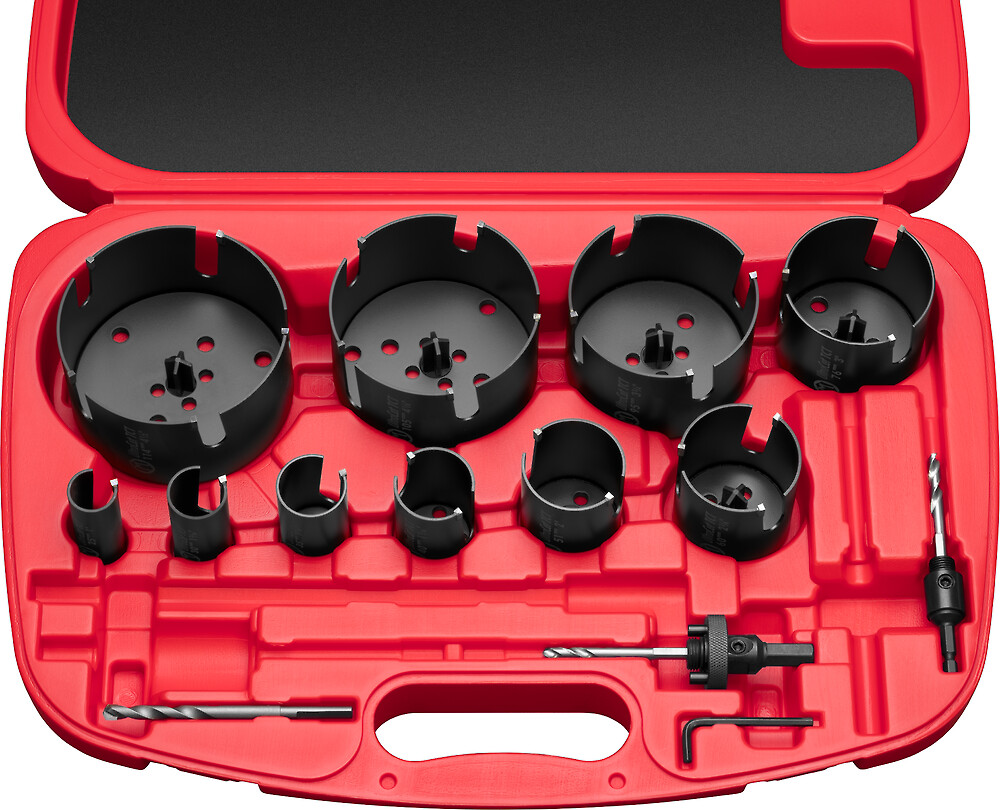

Set Contents

Item Quantity Size type
Size Size (metric)
Size Size (inch)
⌀ Nominal diameter (metric)
⌀ Nominal diameter (inch)
Length Nominal length (metric)
Working Length Nominal working length (metric)
Working Length Nominal working length (inch)
Capacity Opening or cutting capacity
Drive Type of drive
Size Size of drive (metric)
Size Size of drive (inch)
Hole saw 1 pcs 25 mm 1″ 50 mm 2″ UNF ¹⁄₂″
Hole saw 1 pcs 30 mm 1 ³⁄₁₆″ 50 mm 2″ UNF ¹⁄₂″
Hole saw 1 pcs 35 mm 1 ³⁄₈″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 40 mm 1 ⁹⁄₁₆″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 51 mm 2″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 60 mm 2 ³⁄₈″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 76 mm 3″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 95 mm 3 ³⁄₄″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 105 mm 4 ¹⁄₈″ 50 mm 2″ UNF ⁵⁄₈″
Hole saw 1 pcs 114 mm 4 ¹⁄₂″ 50 mm 2″ UNF ⁵⁄₈″
  • Hole saw arbor for small hole saws up to 30 mm (1-3/16")
  • Hexagonal 1/4" (6.3 mm) quick-lock shank can be used with matching tools and accessories as well as conventional drill chucks
  • Comes equipped with high-quality HSS pilot drill bit with 135° split point
  • Hole saw mounting thread on this arbor is UNF 1/2"
Arbor 1 pcs UNF ¹⁄₂″ 30 mm Bit 6.3 mm ¹⁄₄″
  • Hole saw arbor with slide locking for 32 mm (1-1/4") and larger hole saws
  • Sturdy hexagonal 7/16" (11 mm) shank fits extensions and conventional drill chucks
  • Comes equipped with high-quality HSS pilot drill bit with 135° split point
  • Hole saw mounting thread on this arbor is UNF 5/8"
Arbor 1 pcs UNF ⁵⁄₈″ 210 mm Hex 11 mm ⁷⁄₁₆″
For aerated and lightweight aggregate concrete For aerated and lightweight aggregate concrete
For bricks and fired ceramic materials For bricks and fired ceramic materials
  • Carbide tipped pilot drill bit designed for use with TCT hole saws
  • Suitable especially for lightweight concrete and soft ceramic materials
  • Total length of 115 mm is intended to better accommodate the deeper cutting depth of TCT hole saws
Pilot drill bit 1 pcs 8 mm ¹⁄₄″ 115 mm 6.35 mm ¹⁄₄″
Hex key 1 pcs Hex 4.0 mm 70 × 25 mm

Distribution Details

Article no.
44914
GTIN-13 Global Trade Item Number (also known as EAN-13)
6418868449147
HS Code Harmonized System (HS) code for tariff (customs and tax)
8207506000
Unit Unit of measure associated with article
Piece
Content Individual pieces contained inside unit
14 pcs
Bulk Package Type of bulk sales package
Box
Bulk Quantity Quantity contained in bulk sales package
2 pcs
Gross Weight Gross weight of unit
4.15 kg
Unit Width Shelf width of sales package
0.47 m
Unit Height Shelf height of sales package
0.31 m
Unit Depth Shelf depth of sales unit
0.095 m
